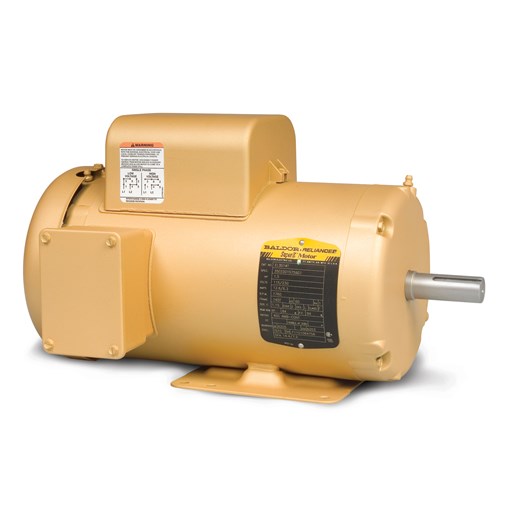

Baldor EL3510 1HP, 1740RPM, 1PH, 60HZ, 56H, 3526LC, TEFC, F1

BaldorSKU: EL3510

Dropship

Get it by Tue, Nov 25 - Sun, Nov 30

Price:
Sale price$825.65

Description

Specs
Catalog Number EL3510
Enclosure TEFC
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Cap Start, Cap Run
Output @ Frequency 1.000 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 115.0 V @ 60 HZ 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR CSA
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 4.650 A @ 230.0 V 9.250 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 4.7 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Type 3526LC
Mounting Arrangement F1
Number of Poles 4
Overall Length 12.91 IN
Power Factor 85
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
Drawings
Nameplate
CAT.NO. EL3510
SPEC. 35J385G241
HP 1
VOLTS 115/230
AMP 9.25/4.65
RPM 1740
FRAME 56H
SER.F. 1.15
NEMA-NOM-EFF 80
RATING 40C AMB-CONT
DE 6205
ENCL TEFC
Performance
Temp. Rise @ S.F. Load 65° C
Start Configuration DOL
Break-Down Torque 7.77 LB-FT
Pull-Up Torque 6.11 LB-FT
Locked-Rotor Torque 9.4 LB-FT
Starting Current 73.8 A
Rated Load Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 50.0 69.0 79.0 86.0 89.0 90.0 88.0
Efficiency 0.0 63.5 75.5 78.5 78.4 76.2 72.3 77.1
Speed (RPM) 1,799 1,784 1,771 1,755 1,738 1,716 1,686 1,725
Line Amps 4.82 5.24 6.28 7.78 9.66 11.96 14.82 11.00
Parts
EC1540A06SP ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE
35FH4005A32SP IEC FH NO GRSR W/3 HOLES - PRIMED
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID
MN416A01 TAG-INSTAL-MAINT no wire (2100bx)4/22
