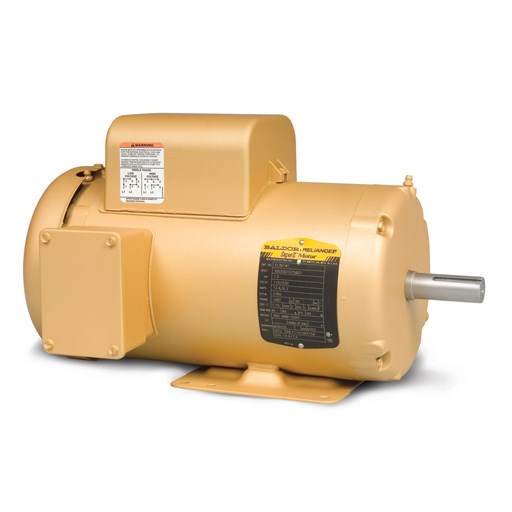

Description
Specs
| Design Code | N |
|---|---|
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 74.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 4.7 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 16 AWG, A PH |
| Motor Type | 3520LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 12.91 IN |
| Power Factor | 94 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL3509 |
|---|---|
| SPEC. | 35J385M131G1 |
| HP | 1 |
| VOLTS | 115/208-230 |
| AMP | 9.4/5-4.7 |
| RPM | 3450 |
| FRAME | 56H |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 74 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEFC |
Parts
| GASKET-CONDUIT BOX, .06 THICK #SV-330 LE | |
| 35FH4005A32SP | IEC FH NO GRSR W/3 HOLES - PRIMED |
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
