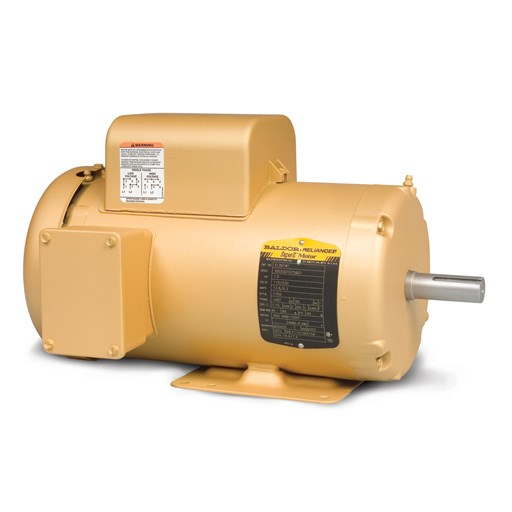

Description
Specs
| Catalog Number | EL3506 |
|---|---|
| Enclosure | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .750 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA CSA EEV NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 7.800 A @ 115.0 V 3.900 A @ 230.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 72.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 3.9 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| IP Rating | NONE |
| KVA Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3424LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 11.97 IN |
| Power Factor | 86 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL3506 |
|---|---|
| SPEC. | 34G375S432G1 |
| HP | .75 |
| VOLTS | 115/230 |
| AMP | 7.8/3.9 |
| RPM | 3450 |
| FRAME | 56 |
| SER.F. | 1.25 |
| NEMA-NOM-EFF | 72 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | TEFC |
Performance
| Line-Line Res. @ 25° C | 0.612 Ohms A Ph / 2.38 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 60° C |
| Temp. Rise @ S.F. Load | 70° C |
| Start Configuration | DOL |
| Break-Down Torque | 3.77 LB-FT |
| Pull-Up Torque | 2.87 LB-FT |
| Locked-Rotor Torque | 3.94 LB-FT |
| Starting Current | 57.5 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 32.0 | 56.0 | 72.0 | 81.0 | 86.0 | 89.0 | 89.0 | 89.0 | ||
| Efficiency | 0.0 | 50.1 | 64.9 | 70.4 | 73.1 | 73.0 | 71.3 | 73.0 | ||
| Speed (RPM) | 3,597 | 3,565 | 3,540 | 3,508 | 3,475 | 3,435 | 3,383 | 3,435 | ||
| Line Amps | 4.01 | 4.49 | 5.34 | 6.50 | 7.84 | 9.31 | 11.30 | 9.31 |
Parts
| OC3030F11SP | CAPACITOR 30 MFD 370 VAC |
|---|---|
| 34EP3102A01SP | FR ENDPLATE, MACH |
| 34EP3102A02SP | FR/PU ENDPLATE, MACH |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| 34FH4002A01SP | IEC FH NO GREASER PRIMED |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
