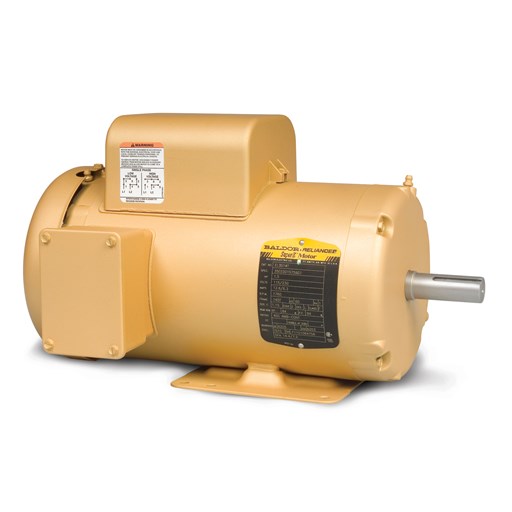

Description
Specs
| Catalog Number | EL3501 |
|---|---|
| Enclosure | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .330 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA CSA EEV NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.200 A @ 115.0 V 1.600 A @ 230.0 V |
| Design Code | - |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 77.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3418LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 11.97 IN |
| Power Factor | 88 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.35 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1740 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL3501 |
|---|---|
| SPEC. | 34G375X28G1 |
| HP | .33 |
| VOLTS | 115/230 |
| AMP | 3.2/1.6 |
| RPM | 1740 |
| FRAME | 56 |
| SER.F. | 1.35 |
| NEMA-NOM-EFF | 77 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | TEFC |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 7.34 Ohms A Ph / 5.89 Ohms B Ph |
| Temp. Rise @ Rated Load | 31° C |
| Temp. Rise @ S.F. Load | 37° C |
| Start Configuration | DOL |
| Break-Down Torque | 2.6 LB-FT |
| Pull-Up Torque | 2.3 LB-FT |
| Locked-Rotor Torque | 3.4 LB-FT |
| Starting Current | 11 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 48.0 | 60.0 | 80.0 | 83.0 | 87.0 | 90.0 | 90.0 | 91.0 | ||
| Efficiency | 0.0 | 50.6 | 68.6 | 75.5 | 77.3 | 77.7 | 76.1 | 77.9 | ||
| Speed (RPM) | 1,793 | 1,782 | 1,772 | 1,759 | 1,741 | 1,724 | 1,703 | 1,717 | ||
| Line Amps | 0.70 | 0.90 | 1.00 | 1.30 | 1.60 | 1.90 | 2.30 | 2.10 |
Parts
| 34EP3102A01SP | FR ENDPLATE, MACH |
|---|---|
| 34EP3102A02SP | FR/PU ENDPLATE, MACH |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| 34FH4002A01SP | IEC FH NO GREASER PRIMED |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
