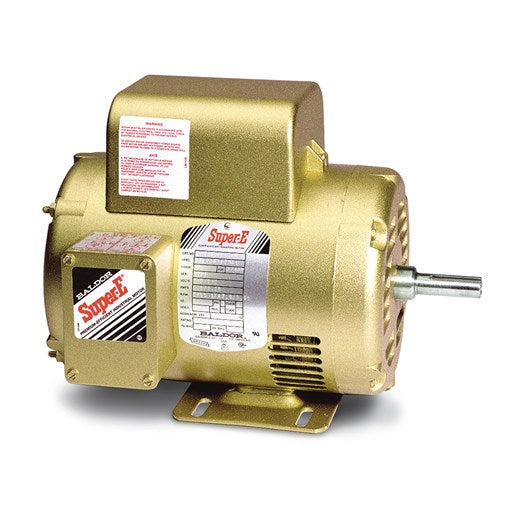

Description
Specs
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
|---|---|
| Voltage @ Frequency | 208.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR CSA EEV CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 11.200 A @ 230.0 V 12.500 A @ 208.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 85.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 11.2 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | F |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 2 @ 14 AWG, A PH |
| Motor Type | 3634LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 16.50 IN |
| Power Factor | 98 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1750 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL1408T |
|---|---|
| SPEC. | 36K265T269E7 |
| HP | 3 |
| VOLTS | 208-230 |
| AMP | 12.5-11.2 |
| RPM | 1750 |
| FRAME | 184T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 85.5 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | OPSB |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 0.9 Ohms A Ph / 2.15 Ohms B Ph |
| Temp. Rise @ Rated Load | 45° C |
| Temp. Rise @ S.F. Load | 56° C |
| Start Configuration | DOL |
| Break-Down Torque | 20.4 LB-FT |
| Pull-Up Torque | 16.7 LB-FT |
| Locked-Rotor Torque | 19.8 LB-FT |
| Starting Current | 70.2 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 81.0 | 95.0 | 98.0 | 99.0 | 99.0 | 96.0 | 95.0 | 97.0 | ||
| Efficiency | 0.0 | 72.9 | 85.0 | 88.0 | 88.1 | 86.7 | 82.8 | 87.3 | ||
| Speed (RPM) | 1,799 | 1,785 | 1,775 | 1,764 | 1,750 | 1,733 | 1,713 | 1,740 | ||
| Line Amps | 1.40 | 3.60 | 5.90 | 8.40 | 11.20 | 14.50 | 18.20 | 13.20 |
Parts
| OC3035F09SP | CYL OIL CAP 35MFD/370V |
|---|---|
| 36CB3800SP | CAPACITOR COVER, CAST |
| 36EP3100A01SP | PUEP ASSEMBLY FOR ROUTING PURPOSES |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
