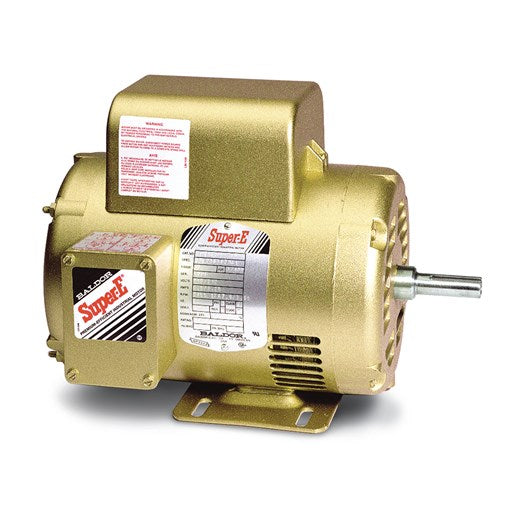

| Catalog Number | EL1406T |
|---|---|
| Enclosure | OPEN |
| Frame | 182T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 3.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR CSA EEV CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 12.300 A @ 230.0 V 24.600 A @ 115.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 81.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 12.3 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 4 @ 14 AWG, A PH |
| Motor Type | 3628LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 15.00 IN |
| Power Factor | 98 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3450 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL1406T |
|---|---|
| SPEC. | 36E002S117E7 |
| HP | 3 |
| VOLTS | 115/230 |
| AMP | 24.6/12.3 |
| RPM | 3450 |
| FRAME | 182T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 81 |
| RATING | 40C AMB-CONT |
| DE | 6206 |
| ENCL | OPEN |
Performance
| Temp. Rise @ S.F. Load | 39° C |
|---|---|
| Start Configuration | DOL |
| Break-Down Torque | 12 LB-FT |
| Pull-Up Torque | 7.9 LB-FT |
| Locked-Rotor Torque | 9.34 LB-FT |
| Starting Current | 59.81 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 86.0 | 99.0 | 100.0 | 99.0 | 99.0 | 99.0 | 97.0 | 97.0 | ||
| Efficiency | 0.0 | 67.5 | 77.8 | 81.4 | 81.5 | 79.9 | 75.7 | 80.2 | ||
| Speed (RPM) | 3,581 | 3,559 | 3,533 | 3,506 | 3,472 | 3,436 | 3,370 | 3,451 | ||
| Line Amps | 1.21 | 3.06 | 5.26 | 7.50 | 10.05 | 12.83 | 17.18 | 14.30 |
Parts
| EC1815A06SP | ELEC CAP 115V 2.0 X 4.3 |
|---|---|
| 36CB3800SP | CAPACITOR COVER, CAST |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
