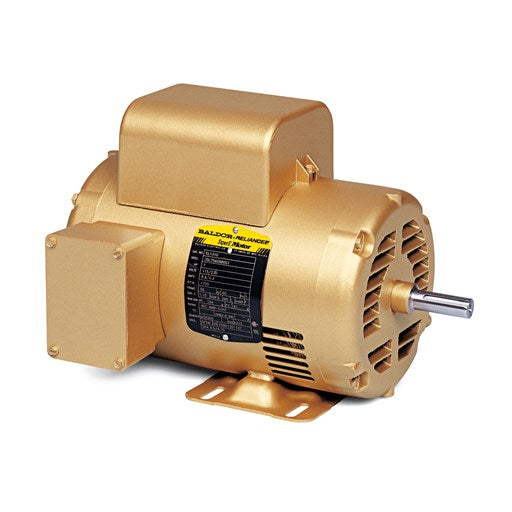

Description
Specs
| Catalog Number | EL11319 |
|---|---|
| Enclosure | ODP |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 1.500 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 11.900 A @ 115.0 V 6.400 A @ 230.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 83.8 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 6.4 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 7 @ 18 AWG |
| Motor Type | 3536LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 14.00 IN |
| Power Factor | 97 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL11319 |
|---|---|
| SPEC. | 35E007G129 |
| HP | 1.5 |
| VOLTS | 115/230 |
| AMP | 12.3/6.1 |
| RPM | 1725 |
| FRAME | 56H |
| SER.F. | 1.15 |
| F.L. AVG. EFF. | 83.8 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | ODP |
Performance
| Temp. Rise @ S.F. Load | 58° C |
|---|---|
| Start Configuration | DOL |
| Break-Down Torque | 12.2 LB-FT |
| Pull-Up Torque | 8.7 LB-FT |
| Locked-Rotor Torque | 13.1 LB-FT |
| Starting Current | 97.5 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 32.0 | 77.0 | 89.0 | 92.0 | 94.0 | 94.0 | 94.0 | 97.0 | ||
| Efficiency | 0.0 | 70.6 | 81.3 | 84.2 | 83.7 | 80.6 | 76.0 | 82.1 | ||
| Speed (RPM) | 1,799 | 1,786 | 1,774 | 1,759 | 1,744 | 1,721 | 1,691 | 1,723 | ||
| Line Amps | 3.82 | 4.57 | 6.72 | 9.43 | 12.30 | 16.12 | 20.55 | 14.20 |
Parts
| EC1540A06SP | ELEC CAP, 540-648 MFD, 125V, 2.06D X 4. |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
