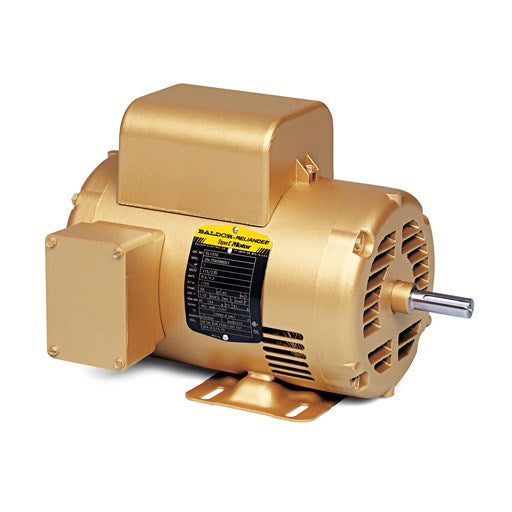

Description
Specs
| Catalog Number | EL11308 |
|---|---|
| Enclosure | OPEN |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .750 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 208.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.200 A @ 230.0 V 3.500 A @ 208.0 V 6.300 A @ 115.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 81.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 3.2 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| IP Rating | NONE |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3530LC |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 12.62 IN |
| Power Factor | 95 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1160 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| VOLTS | 115/208-230 |
|---|---|
| AMP | 6.3/3.5-3.2 |
| RPM | 1160 |
| FRAME | 56H |
| SER.F. | 1.00 |
| F.L. AVG. EFF. | 81.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | OPEN |
Performance
| Line-Line Res. @ 25° C | 1.4 Ohms A Ph / 1.84 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 39° C |
| Start Configuration | DOL |
| Break-Down Torque | 8.03 LB-FT |
| Pull-Up Torque | 5.18 LB-FT |
| Locked-Rotor Torque | 11.2 LB-FT |
| Starting Current | 44.2 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 60.0 | 84.0 | 91.0 | 94.0 | 95.0 | 95.0 | 93.0 | 0.0 | ||
| Efficiency | 0.0 | 54.8 | 72.8 | 79.9 | 81.6 | 79.7 | 73.7 | 0.0 | ||
| Speed (RPM) | 1,198 | 1,190 | 1,182 | 1,172 | 1,160 | 1,143 | 1,115 | 0 | ||
| Line Amps | 1.97 | 2.66 | 3.66 | 4.84 | 6.28 | 8.03 | 10.60 | 0.00 |
Parts
| OC3050F09SP | CAPACITOR 50 MFD 370 VAC |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
