Description
Specs

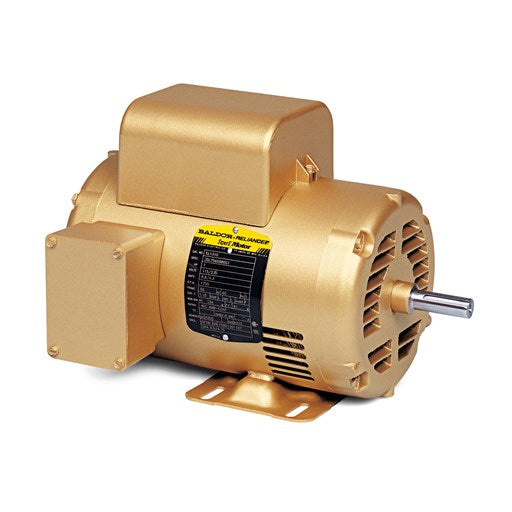

| Catalog Number | EL11307 |
|---|---|
| Enclosure | ODP |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .750 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.050 A @ 230.0 V 3.350 A @ 208.0 V 6.100 A @ 115.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 82.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 3.1 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3522LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 12.07 IN |
| Power Factor | 95 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1755 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL11307 |
|---|---|
| SPEC. | 35M497L999 |
| HP | .75 |
| VOLTS | 115/230 |
| AMP | 6.1/3.05 |
| RPM | 1755 |
| FRAME | 56 |
| SER.F. | 1.25 |
| F.L. AVG. EFF. | 82.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | ODP |
Performance
| Line-Line Res. @ 25° C | 1.1149 Ohms A Ph / 1.137 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 78° C |
| Temp. Rise @ S.F. Load | 103° C |
| Start Configuration | DOL |
| Break-Down Torque | 6.17 LB-FT |
| Pull-Up Torque | 5.27 LB-FT |
| Locked-Rotor Torque | 9.16 LB-FT |
| Starting Current | 59 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 44.0 | 77.0 | 91.0 | 94.0 | 95.0 | 96.0 | 96.0 | 96.0 | ||
| Efficiency | 0.0 | 60.5 | 76.7 | 81.9 | 83.3 | 82.5 | 80.7 | 82.5 | ||
| Speed (RPM) | 1,799 | 1,788 | 1,777 | 1,766 | 1,753 | 1,736 | 1,718 | 1,736 | ||
| Line Amps | 2.04 | 2.64 | 3.52 | 4.75 | 6.12 | 7.74 | 9.43 | 7.74 |
Parts
| CAPACITOR 50 MFD 370 VAC | |
| EC1540A06SP | ELEC CAP, 540-648 MFD, 125V, 2.06D X 4. |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
