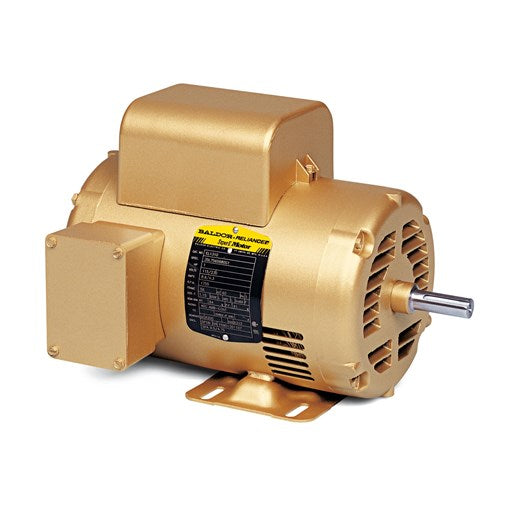

Description
Specs
| Catalog Number | EL11207 |
|---|---|
| Enclosure | OPEN |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .330 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 1.900 A @ 230.0 V 3.800 A @ 115.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 68.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.9 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| KVA Code | J |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3421LC |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 9.76 IN |
| Power Factor | 83 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.35 |
| Shaft Diameter | 0.500 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1140 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL11207 |
|---|---|
| SPEC. | 34F351R143G1 |
| HP | .33 |
| VOLTS | 115/230 |
| AMP | 3.8/1.9 |
| RPM | 1140 |
| FRAME | 48 |
| SER.F. | 1.35 |
| F.L. AVG. EFF. | 68 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | OPEN |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 2.3572 Ohms A Ph / 7.0402 Ohms B Ph |
| Temp. Rise @ Rated Load | 43° C |
| Temp. Rise @ S.F. Load | 59° C |
| Start Configuration | DOL |
| Break-Down Torque | 3.24 LB-FT |
| Pull-Up Torque | 2.8 LB-FT |
| Locked-Rotor Torque | 4.73 LB-FT |
| Starting Current | 20.8 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 42.0 | 60.0 | 72.0 | 79.0 | 83.0 | 86.0 | 88.0 | 87.0 | ||
| Efficiency | 0.0 | 40.7 | 59.2 | 66.9 | 70.5 | 71.1 | 68.5 | 70.1 | ||
| Speed (RPM) | 1,199 | 1,187 | 1,176 | 1,165 | 1,152 | 1,136 | 1,110 | 1,125 | ||
| Line Amps | 2.18 | 2.25 | 2.56 | 3.07 | 3.65 | 4.33 | 5.33 | 4.73 |
Parts
| 34EP3210A01SP | FR ENDPLATE, MACH |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
