Description
Specs

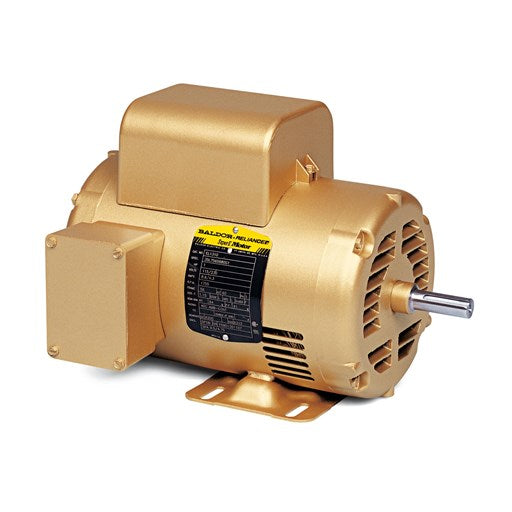

| Catalog Number | EL11205 |
|---|---|
| Enclosure | ODP |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | .330 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 115.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CURUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 1.500 A @ 230.0 V 3.000 A @ 115.0 V |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 70.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 6 @ 18 AWG |
| Motor Type | 3413LC |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 9.76 IN |
| Power Factor | 97 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.35 |
| Shaft Diameter | 0.500 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3475 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EL11205 |
|---|---|
| SPEC. | 34F351R144G1 |
| HP | .33 |
| VOLTS | 115/230 |
| AMP | 3/1.5 |
| RPM | 3475 |
| FRAME | 48 |
| SER.F. | 1.35 |
| F.L. AVG. EFF. | 70.5 |
| RATING | 40C AMB-CONT |
| DE | 6203 |
| ENCL | ODP |
Performance
| Temp. Rise @ S.F. Load | 17° C |
|---|---|
| Start Configuration | DOL |
| Break-Down Torque | 1.37 LB-FT |
| Pull-Up Torque | 1.11 LB-FT |
| Locked-Rotor Torque | 1.63 LB-FT |
| Starting Current | 21.7 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 94.0 | 97.0 | 98.0 | 98.0 | 99.0 | 99.0 | 98.0 | 99.0 | ||
| Efficiency | 0.0 | 43.3 | 61.5 | 70.3 | 74.5 | 76.4 | 77.7 | 76.9 | ||
| Speed (RPM) | 3,599 | 3,567 | 3,550 | 3,526 | 3,501 | 3,474 | 3,445 | 3,463 | ||
| Line Amps | 0.91 | 1.29 | 1.76 | 2.32 | 2.91 | 3.54 | 4.20 | 3.80 |
