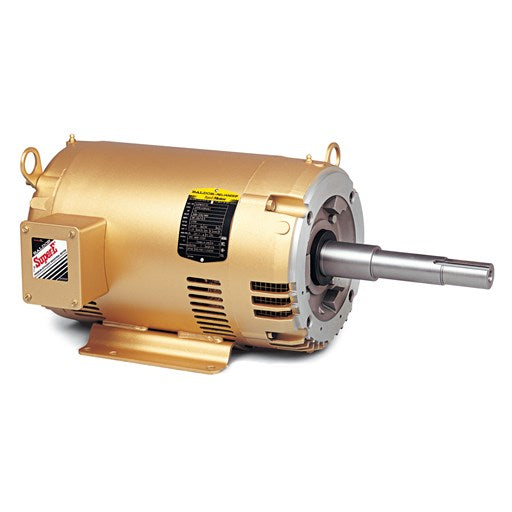

Description
Specs
| Catalog Number | EJPM2538T |
|---|---|
| Enclosure | OPSB |
| Frame | 286JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 40.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 90.000 A @ 230.0 V 99.000 A @ 208.0 V 45.000 A @ 460.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 92.4 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 45.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 8 AWG |
| Motor Type | 3956M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 29.44 IN |
| Power Factor | 90 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3510 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EJPM2538T |
|---|---|
| SPEC. | 39E303X287 |
| HP | 40 |
| RPM | 3510 |
| VOLT | 230/460 |
| AMP | 90/45 |
| RATING | 40C AMB-CONT |
| NEMA-NOM-EFF | 92.4 |
Performance
| Start Configuration | DOL |
|---|---|
| Break-Down Torque | 252 LB-FT |
| Pull-Up Torque | 80.9 LB-FT |
| Locked-Rotor Torque | 115 LB-FT |
| Starting Current | 326 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 65.0 | 82.0 | 88.0 | 90.0 | 91.0 | 92.0 | 91.0 | ||
| Efficiency | 0.0 | 92.7 | 94.1 | 93.8 | 92.7 | 91.4 | 89.9 | 91.9 | ||
| Speed (RPM) | 3,599 | 3,578 | 3,555 | 3,531 | 3,503 | 3,474 | 3,441 | 3,486 | ||
| Line Amps | 11.30 | 16.10 | 24.40 | 34.10 | 45.30 | 56.60 | 68.60 | 52.08 |
Parts
| 10CB3000SP | KOBX, CAST W/2.00 LEAD HOLE |
|---|---|
| 39EP3200A01SP | FR/PU ENDPLATE, MACH |
| 10CB3500SP | CONDUIT BOX LID, CAST |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
