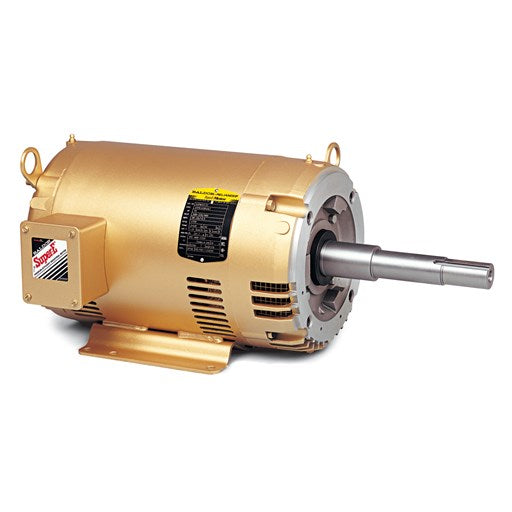

Description
Specs
| Catalog Number | EJPM2534T |
|---|---|
| Enclosure | OPSB |
| Frame | 284JP |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 30.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 66.000 A @ 230.0 V 74.000 A @ 208.0 V 33.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 33.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | F |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 8 AWG |
| Motor Type | 3948M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 29.44 IN |
| Power Factor | 92 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | Included |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3510 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EJPM2534T |
|---|---|
| SPEC. | 39E303X286 |
| HP | 30 |
| RPM | 3510 |
| VOLT | 230/460 |
| AMP | 66/33 |
| RATING | 40C AMB-CONT |
| NEMA-NOM-EFF | 91.7 |
Performance
| Start Configuration | DOL |
|---|---|
| Break-Down Torque | 148 LB-FT |
| Pull-Up Torque | 53 LB-FT |
| Locked-Rotor Torque | 67.5 LB-FT |
| Starting Current | 207 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 9.0 | 70.0 | 87.0 | 91.0 | 92.0 | 92.0 | 92.0 | 92.0 | ||
| Efficiency | 0.0 | 89.4 | 92.5 | 92.6 | 91.8 | 90.7 | 89.0 | 91.1 | ||
| Speed (RPM) | 3,599 | 3,577 | 3,555 | 3,531 | 3,505 | 3,478 | 3,443 | 3,489 | ||
| Line Amps | 7.51 | 10.90 | 17.20 | 24.90 | 33.10 | 41.70 | 51.80 | 38.26 |
Parts
| KOBX, CAST W/2.00 LEAD HOLE | |
| 39EP3200A01SP | FR/PU ENDPLATE, MACH |
| 10CB3500SP | CONDUIT BOX LID, CAST |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
