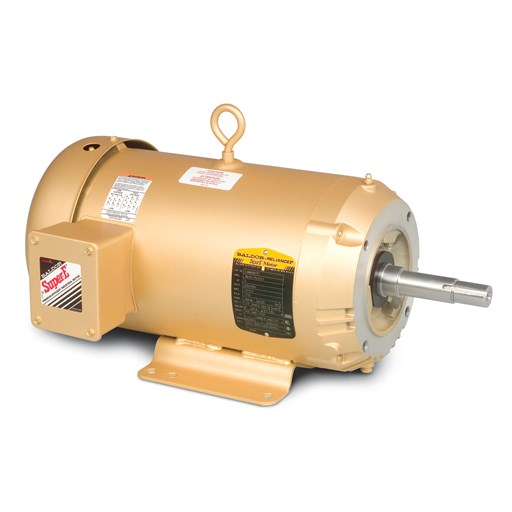

| Catalog Number | EJMM3711T-G |
|---|---|
| Enclosure | TEFC |
| Frame | 215JM |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 23.200 A @ 230.0 V 24.900 A @ 208.0 V 11.600 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 90.2 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 11.6 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 3730M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 19.76 IN |
| Power Factor | 88 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3490 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EJMM3711T-G |
|---|---|
| SPEC | 37K496S864G1 |
| HP | 10 |
| VOLTS | 230/460 |
| AMPS | 23.2/11.6 |
| RPM | 3490 |
| FRAME | 215JM |
| SF | 1.15 |
| NEMA NOM. EFF | 90.2 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| ENCL | TEFC |
| DE | 6309 |
Performance
| Temp. Rise @ Rated Load | 79° C |
|---|---|
| Temp. Rise @ S.F. Load | 98° C |
| Start Configuration | DOL |
| Break-Down Torque | 44.8 LB-FT |
| Pull-Up Torque | 21.9 LB-FT |
| Locked-Rotor Torque | 20.5 LB-FT |
| Starting Current | 68.9 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 14.0 | 54.0 | 74.0 | 83.0 | 87.0 | 88.0 | 89.0 | 88.0 | ||
| Efficiency | 0.0 | 77.2 | 85.2 | 87.6 | 88.3 | 88.2 | 87.6 | 90.0 | ||
| Speed (RPM) | 3,596 | 3,577 | 3,557 | 3,536 | 3,514 | 3,490 | 3,463 | 3,464 | ||
| Line Amps | 4.68 | 5.61 | 7.42 | 9.69 | 12.20 | 15.00 | 18.00 | 13.50 |
Parts
| EXFN, PLASTIC, 5.25 OD, 1.175 ID | |
| 37GS1000SP | GASKET, CONDUIT BOX STD., .06 THICK LEXI |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| 07FH4007SP | PRIMED |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
