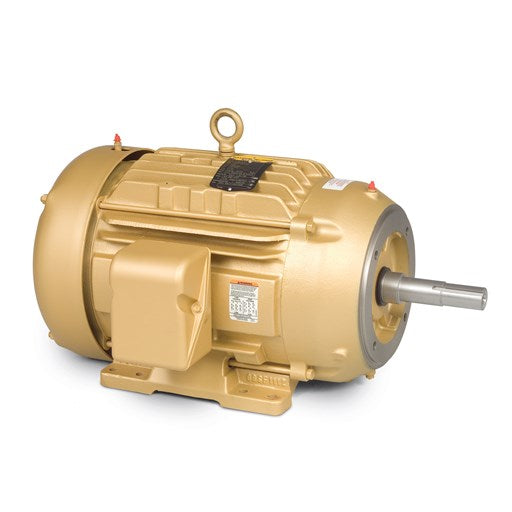

Description
Specs
| Catalog Number | EJMM2394T |
|---|---|
| Enclosure | TEFC |
| Frame | 254JM |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 35.000 A @ 230.0 V 38.000 A @ 208.0 V 17.500 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 17.5 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 12 AWG |
| Motor Type | 0930M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 25.36 IN |
| Power Factor | 87 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C-Face |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.250 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3520 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EJMM2394T |
|---|---|
| SPEC | 09-0000-2958 |
| HP | 15 |
| VOLTS | 230/460 |
| AMPS | 35/17.5 |
| RPM | 3520 |
| FRAME | 254JM |
| SF | 1.15 |
| NEMA NOM. EFF | 91 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| ENCL | TEFC |
| DE | 6309 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|---|
| 09FH4000SP | 309 FH - BLACK PRIMER |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
| 09CB3501SP | CONDUIT BOX LID FOR 09CB3001 & 09CB3002 |
| 09GS1013SP | GS FOR 09CB3501, 12CB1500 & 12CB1503 LID |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD |
