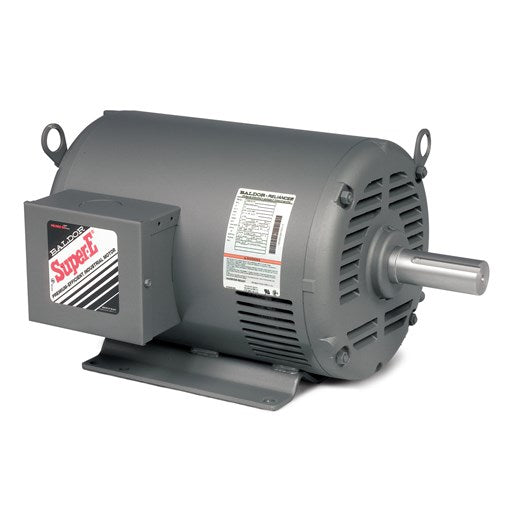

Description
Specs
| Catalog Number | EHM2547T |
|---|---|
| Enclosure | OPSB |
| Frame | 364T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 60.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 136.000 A @ 230.0 V 144.000 A @ 208.0 V 68.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 68.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 8 AWG |
| Motor Type | 4272M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 29.94 IN |
| Power Factor | 88 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 2.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | Mounting Provisions Only |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1775 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EHM2547T |
|---|---|
| SPEC. | 42H067W434G1 |
| HP | 60 |
| VOLTS | 230/460 |
| AMPS | 136/68 |
| RPM | 1775 |
| FRAME | 364T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 95 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6313 |
| ENCL | OPSB |
Performance
| Line-Line Res. @ 25° C | 0.0887 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 31° C |
| Temp. Rise @ S.F. Load | 41° C |
| Start Configuration | DOL |
| Break-Down Torque | 614 LB-FT |
| Pull-Up Torque | 240 LB-FT |
| Locked-Rotor Torque | 309 LB-FT |
| Starting Current | 464 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 56.0 | 77.0 | 85.0 | 88.0 | 89.0 | 89.0 | 88.0 | ||
| Efficiency | 0.0 | 92.6 | 94.9 | 95.3 | 95.0 | 94.6 | 93.7 | 94.8 | ||
| Speed (RPM) | 1,799 | 1,793 | 1,787 | 1,781 | 1,775 | 1,769 | 1,762 | 1,771 | ||
| Line Amps | 22.20 | 27.30 | 38.70 | 52.10 | 67.50 | 83.60 | 101.30 | 77.10 |
