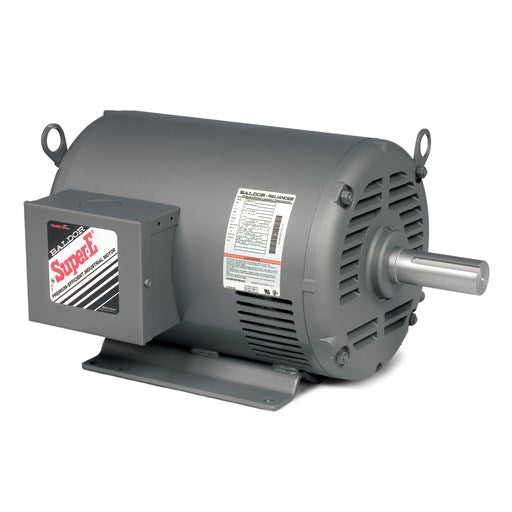

Description
Specs
| Catalog Number | EHM2532T |
|---|---|
| Enclosure | OPSB |
| Frame | 324T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 25.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ 460.0 V @ 60 HZ |
| Agency Approvals | UR CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 34.000 A @ 460.0 V 68.000 A @ 230.0 V 70.000 A @ 208.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 93.0 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 34.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | J |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 10 AWG |
| Motor Type | 4072M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 27.69 IN |
| Power Factor | 76 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 2.125 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | Mounting Provisions Only |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1180 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EHM2532T |
|---|---|
| SPEC. | 40E329X192G1 |
| HP | 25 |
| VOLTS | 230/460 |
| AMPS | 68/34 |
| RPM | 1180 |
| FRAME | 324T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 93 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6312 |
| ENCL | OPSB |
Performance
| Temp. Rise @ Rated Load | 40° C |
|---|---|
| Temp. Rise @ S.F. Load | 48° C |
| Start Configuration | DOL |
| Break-Down Torque | 410 LB-FT |
| Pull-Up Torque | 205 LB-FT |
| Locked-Rotor Torque | 217 LB-FT |
| Starting Current | 236 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 4.0 | 36.0 | 57.0 | 70.0 | 76.0 | 79.0 | 80.0 | 78.0 | ||
| Efficiency | 0.0 | 87.0 | 91.2 | 92.4 | 92.7 | 92.3 | 91.5 | 92.5 | ||
| Speed (RPM) | 1,199 | 1,196 | 1,192 | 1,188 | 1,185 | 1,181 | 1,176 | 1,183 | ||
| Line Amps | 16.70 | 18.50 | 22.30 | 27.40 | 33.50 | 40.30 | 47.80 | 37.60 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
