Description
Specs

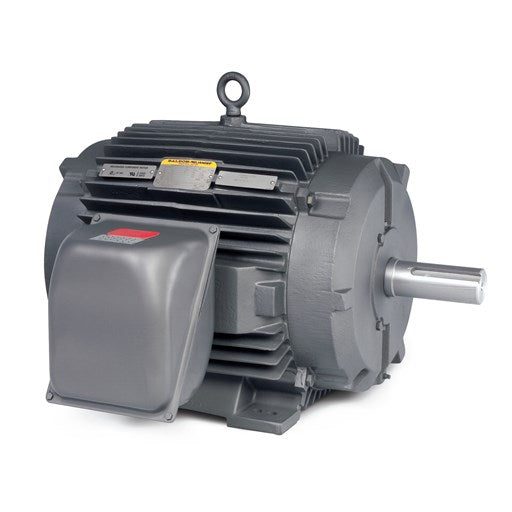

| Catalog Number | ECTM4314T |
|---|---|
| Enclosure | TEAO |
| Frame | 364T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 60.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Current @ Voltage | 136.000 A @ 230.0 V 68.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.0 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 68.0 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 3 @ 4 AWG |
| Motor Type | A36062M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 29.70 IN |
| Power Factor | 87 |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 2.374 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1780 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
Drawings
Nameplate
| HP | 60HP |
|---|---|
| FRAME | 364T |
| DRIVE END BEARING | 65BC03JGG30A |
| OPP D.E. BEARING | 65BC03JGG30A |
| D.E.BRG.DATA | 6313 |
| O.D.E.BRG.DATA | 6313 |
| 3/4 LOAD EFF. | 95 |
Performance
| Rated Load |
|---|
Parts
| 412118006A | DRAIN |
|---|
