Description
Specs

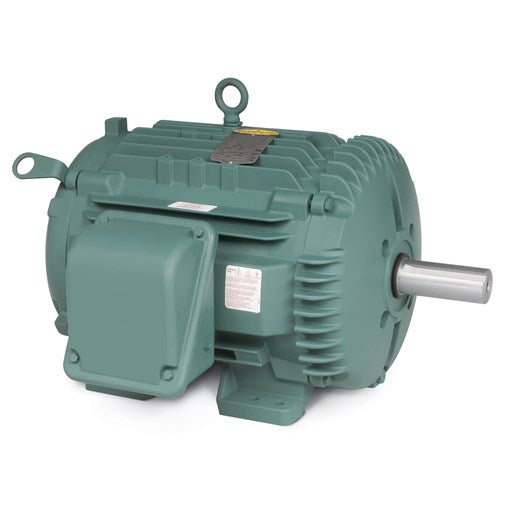

| Catalog Number | ECTM4100T |
|---|---|
| Enclosure | TEAO |
| Frame | 284T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 42.000 A @ 208.0 V 42.000 A @ 230.0 V 21.000 A @ 460.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Modification | Severe Duty Features |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 21.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 10 AWG |
| Motor Type | 1046M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 25.63 IN |
| Power Factor | 73 |
| Product Family | Super-E Chemical Processing |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 1.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1175 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | ECTM4100T |
|---|---|
| SPEC. | 10K189Y561G1 |
| HP | 15 AIR OVER |
| VOLTS | 230/460 |
| AMP | 42/21 |
| RPM | 1175 |
| FRAME | 284T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 91.7 |
| RATING | 40C AMB-CONT |
| DE | 6311 |
| ENCL | TEAO |
Performance
| Line-Line Res. @ 25° C | 0.56099 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 49° C |
| Temp. Rise @ S.F. Load | 59° C |
| Start Configuration | DOL |
| Break-Down Torque | 195 LB-FT |
| Pull-Up Torque | 91.4 LB-FT |
| Locked-Rotor Torque | 115 LB-FT |
| Starting Current | 125 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 34.0 | 54.0 | 66.0 | 73.0 | 76.0 | 77.0 | 75.0 | ||
| Efficiency | 0.0 | 85.0 | 90.6 | 91.8 | 92.0 | 91.5 | 91.3 | 91.7 | ||
| Speed (RPM) | 1,200 | 1,197 | 1,193 | 1,189 | 1,184 | 1,179 | 1,178 | 1,181 | ||
| Line Amps | 11.30 | 12.20 | 14.30 | 17.30 | 20.80 | 25.10 | 26.10 | 23.40 |
Parts
| TAG-INSTAL-MAINT no wire (2100bx)4/22 |
