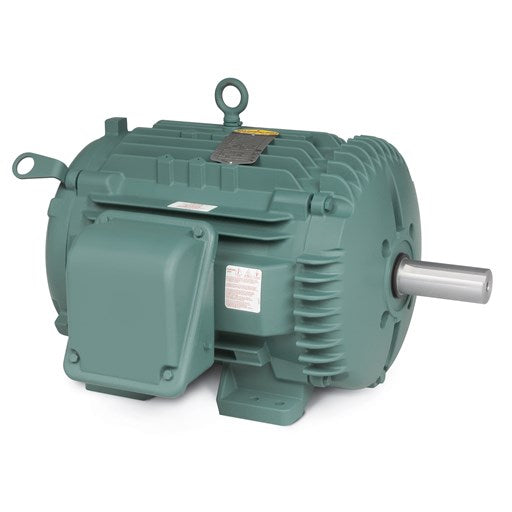

Description
Specs
| Catalog Number | ECTM3768T |
|---|---|
| Enclosure | TEAO |
| Frame | 215T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 5.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR CSA EEV CSA |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 15.800 A @ 208.0 V 7.300 A @ 460.0 V 14.600 A @ 230.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 90.2 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 7.3 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | K |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 14 AWG |
| Motor Type | 0748M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 19.54 IN |
| Power Factor | 72 |
| Product Family | Chemical Processing (Not DC) |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Tapped & Key |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1160 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| SPEC. | 07N391X823G1 |
|---|---|
| HP | 5 AIR OVER |
| VOLTS | 230/460 |
| AMP | 14.6/7.3 |
| RPM | 1160 |
| FRAME | 215T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 90.2 |
| RATING | 40C AMB-CONT |
| DE | 6307 |
| ENCL | TEAO |
Performance
| Temp. Rise @ S.F. Load | 61° C |
|---|---|
| Start Configuration | DOL |
| Break-Down Torque | 77.4 LB-FT |
| Pull-Up Torque | 46.7 LB-FT |
| Locked-Rotor Torque | 56.1 LB-FT |
| Starting Current | 51.9 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 34.0 | 54.0 | 65.0 | 72.0 | 75.0 | 77.0 | 74.0 | ||
| Efficiency | 0.0 | 85.8 | 90.1 | 90.8 | 90.3 | 89.1 | 87.6 | 89.6 | ||
| Speed (RPM) | 1,199 | 1,190 | 1,181 | 1,173 | 1,163 | 1,151 | 1,138 | 1,156 | ||
| Line Amps | 3.70 | 4.01 | 4.79 | 5.88 | 7.29 | 8.77 | 10.40 | 8.18 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
