Description
Specs

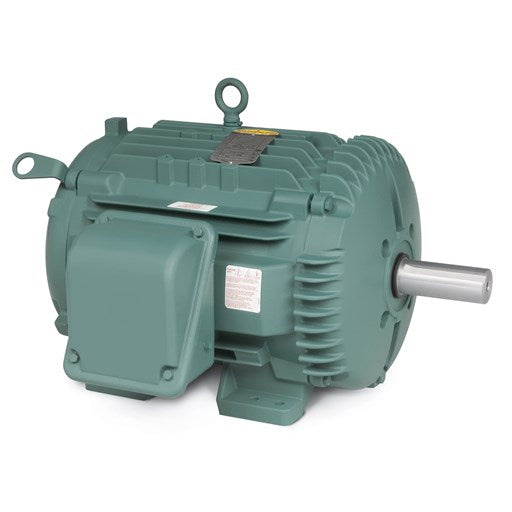

| Catalog Number | ECTM2333T |
|---|---|
| Enclosure | TEAO |
| Frame | 254T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 15.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | NEMA_PREMIUM UR NEMA PREMIUM CSA EEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 36.200 A @ 230.0 V 38.000 A @ 208.0 V 18.100 A @ 460.0 V |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 92.4 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 18.1 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| IP Rating | NONE |
| KVA Code | H |
| Lifting Lugs | Vertical Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 12 AWG |
| Motor Type | 0944M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 23.09 IN |
| Power Factor | 84 |
| Product Family | Super-E Chemical Processing |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1765 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | ECTM2333T |
|---|---|
| SPEC. | 09L877T597G1 |
| HP | 15 AIR OVER |
| VOLTS | 230/460 |
| AMP | 36.2/18.1 |
| RPM | 1765 |
| FRAME | 254T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 92.4 |
| RATING | 40C AMB-CONT |
| DE | 6309 |
| ENCL | TEAO |
Performance
| Temp. Rise @ Rated Load | 52° C |
|---|---|
| Temp. Rise @ S.F. Load | 67° C |
| Start Configuration | DOL |
| Break-Down Torque | 154 LB-FT |
| Pull-Up Torque | 67.2 LB-FT |
| Locked-Rotor Torque | 83.5 LB-FT |
| Starting Current | 129 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 6.0 | 48.0 | 69.0 | 79.0 | 84.0 | 86.0 | 87.0 | 86.0 | ||
| Efficiency | 0.0 | 88.0 | 92.1 | 92.7 | 92.5 | 91.7 | 90.7 | 91.9 | ||
| Speed (RPM) | 1,799 | 1,792 | 1,785 | 1,777 | 1,768 | 1,759 | 1,749 | 1,761 | ||
| Line Amps | 7.32 | 8.45 | 11.00 | 14.30 | 18.10 | 22.20 | 26.70 | 20.50 |
Parts
| .25-20 X .75, TAPTITE II, HEX WSHR SLTD | |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
