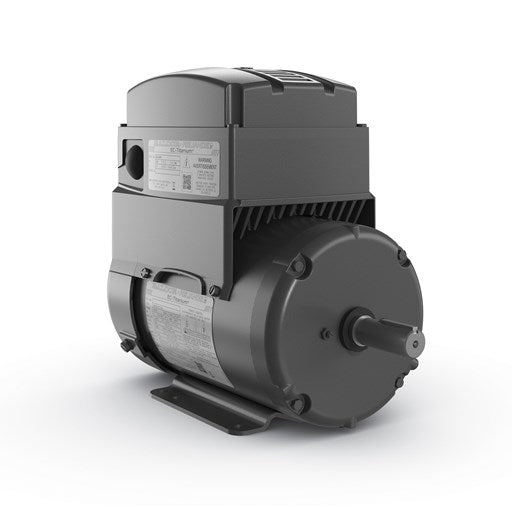

Description
Specs
| Electrically Isolated Bearing | Not Electrically Isolated |
|---|---|
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 8.7 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3730B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 18.10 IN |
| Power Factor | 92 |
| Product Family | General Purpose |
| Pulley Face Code | Standard |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 1.375 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1800 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| U1 | 480 |
|---|---|
| I1 | 7.8 |
| CAT.NO. | ECS101T4H7FF4 |
| SPEC. | 37-0000-0280 |
| FRAME | 213T |
| HP | 7.5 |
| NOM. EFF. | 94 |
| VOLTS | 460 |
| RPM | 1800 |
| HZ | 60 |
| BEMF (V) | 225 |
| LD (MH) | 26.5 |
| CT | 6 |
| MATCHED INV | ECIN4A9P5 |
| DE | 6307 |
Parts
| MN451 | EC Titanium Quick Start 04/20 |
|---|---|
| 37FN3002A01SP | EXFN, PLASTIC, 9.00 OD, 1.155 ID |
| ECIN4A9P5SP | SP 3638 380-480V, 5.0HP, 9.5A, W/BK CHOP |
