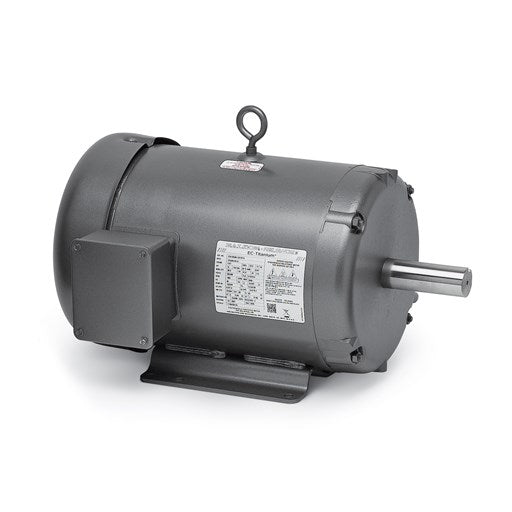

Description
Specs
| Catalog Number | ECS101M0H3EF4 |
|---|---|
| Enclosure | TEFC |
| Frame | 182T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Phase | 3 |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CULUS WEEE |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 6 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| Heater Indicator | No Heater |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 16 AWG |
| Motor Type | 3624B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 16.54 IN |
| Product Family | General Purpose |
| Pulley Face Code | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Shaft Diameter | 1.125 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | INVERTER SPECIAL |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | ECS101M0H3EF4 |
|---|---|
| SPEC. | 36T257L050G1 |
| FRAME | 182T |
| NOM. EFF. | 92.8% |
| VOLTS | 230/460 |
| HZ | 60 |
| BEMF (V) | 106/212 |
| LD (MH) | 14.4/57.7 |
| CT | 6 |
| MATCHED INV | ACS380-04XX-07A8-1/05A6-4 |
| DE | 6206 |
Parts
| MN451 | EC Titanium Quick Start 04/20 |
|---|
