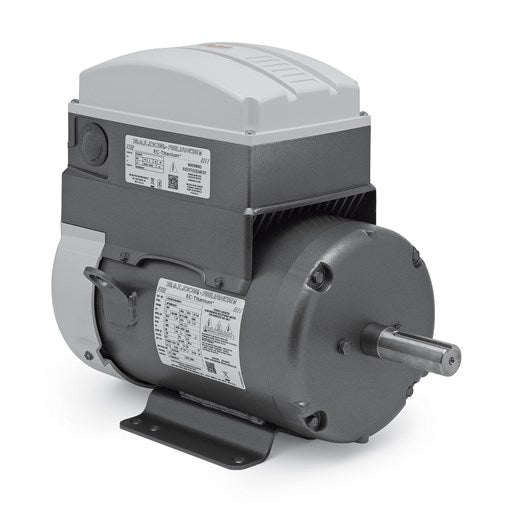

Description
Specs
| Feedback Device | NO FEEDBACK |
|---|---|
| Heater Indicator | No Heater |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 16 AWG |
| Motor Type | 3520B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 12.37 IN |
| Product Family | General Purpose |
| Pulley Face Code | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Shaft Diameter | 0.875 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | INVERTER SPECIAL |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | ECS100T8H2DF4 |
|---|---|
| SPEC. | 35E5209Z720G2 |
| FRAME | 145T |
| HP | 2 |
| NOM. EFF. | 90.7% |
| VOLTS | 230 |
| RPM | 1800 |
| HZ | 60 |
| BEMF (V) | 125 |
| LD (MH) | 30.3 |
| CT | 6 |
| MATCHED INV | ECI8A7P0 |
| DE | 6205 |
| PART NO. | ECI8A7P0 |
| U1 | 240 |
| I1 | 12.5 |
Parts
| HW4600B32SP | V-RING SLINGER 1.000 X 1.540 X .24 VITON |
|---|---|
| 35FN3002A05SP | EXFN, PLASTIC, 6.376 OD, .638 ID |
| MN451 | EC Titanium Quick Start 04/20 |
