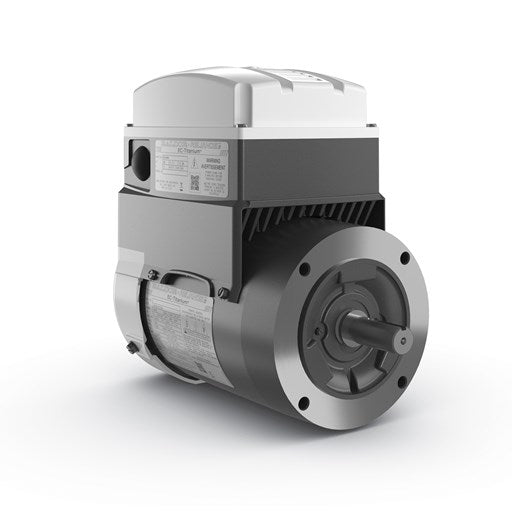

Description
Specs
| Catalog Number | ECS100T4H7FC4 |
|---|---|
| Enclosure | TEFC |
| Frame | 213TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 7.500 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | BLUETOOTH CULUS WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | No Mounting |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 6 |
| Current @ Voltage | 8.700 A @ 460.0 V |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 94.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 8.7 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3730B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 18.83 IN |
| Power Factor | 92 |
| Product Family | General Purpose |
| Pulley Face Code | C-Face |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 1.375 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1800 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| PART NO. | ECI4A9P5 |
|---|---|
| U1 | 480 |
| I1 | 9.5 |
| CAT.NO. | ECS100T4H7FC4 |
| SPEC. | 37-0001719 |
| FRAME | 213TC |
| HP | 7.5 |
| NOM. EFF. | 94.7 |
| VOLTS | 460 |
| RPM | 1800 |
| HZ | 60 |
| BEMF (V) | 225 |
| LD (MH) | 26.5 |
| CT | 6 |
| MATCHED INV | ECI4A9P5 |
| DE | 6307 |
Parts
| EC Titanium Quick Start 04/20 | |
| 37FN3002A01SP | EXFN, PLASTIC, 9.00 OD, 1.155 ID |
