Description
Specs

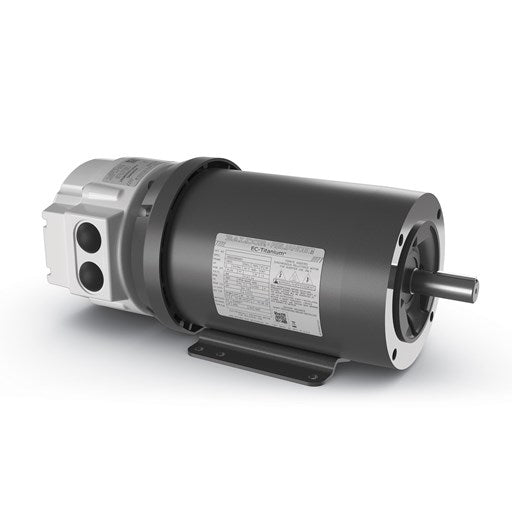

| Catalog Number | ECS100A4H2DB4 |
|---|---|
| Enclosure | TEFC |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 2.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | BLUETOOTH CULUS WEEE |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 6 |
| Current @ Voltage | 2.200 A @ 460.0 V |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 90.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 2.2 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3520B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 17.71 IN |
| Power Factor | 96 |
| Product Family | General Purpose |
| Pulley Face Code | C-Face |
| Rodent Screen | None |
| Service Factor | 1.00 |
| Shaft Diameter | 0.875 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1800 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| PART NO. | ECI4A2P2 |
|---|---|
| U1 | 480 |
| I1 | 3.2 |
| CAT.NO. | ECS100A4H2DB4 |
| SPEC. | 35-0001557 |
| FRAME | 145TC |
| HP | 2 |
| NOM. EFF. | 90.7 |
| VOLTS | 460 |
| RPM | 1800 |
| HZ | 60 |
| BEMF (V) | 225 |
| LD (MH) | 131 |
| CT | 6 |
| MATCHED INV | ECI4A2P2 |
| DE | 6205 |
Parts
| MN451 | EC Titanium Quick Start 04/20 |
|---|---|
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| HW4600B32SP | V-RING SLINGER 1.000 X 1.540 X .24 VITON |
