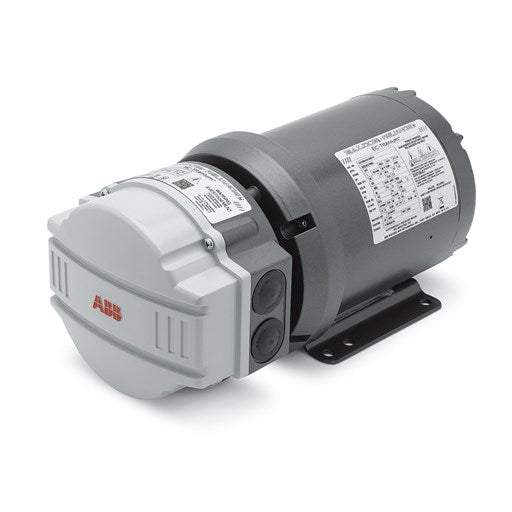

Description
Specs
| Catalog Number | ECS100A2H1DF4 |
|---|---|
| Enclosure | TEFC |
| Frame | 143T |
| Frame Material | Steel |
| Motor Letter Type | Brushless Wound Field PM Rotor |
| Phase | 3 |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UL WEEE |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 6 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| Heater Indicator | No Heater |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 16 AWG |
| Motor Type | 3514B |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 16.71 IN |
| Product Family | General Purpose |
| Pulley Face Code | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Shaft Diameter | 0.875 IN |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | INVERTER SPECIAL |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | ECS100A2H1DF4 |
|---|---|
| SPEC. | 35E5247Z719G3 |
| FRAME | 143T |
| HP | 1 |
| NOM. EFF. | 89.3% |
| VOLTS | 230 |
| RPM | 1800 |
| HZ | 60 |
| BEMF (V) | 124 |
| LD (MH) | 48.7 |
| CT | 6 |
| MATCHED INV | ECI2A4P3 |
| DE | 6205 |
| PART NO. | ECI2A4P3 |
| U1 | 240 |
| I1 | 3.6 |
Parts
| EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ | |
| HW4600B32SP | V-RING SLINGER 1.000 X 1.540 X .24 VITON |
| MN451 | EC Titanium Quick Start 04/20 |
