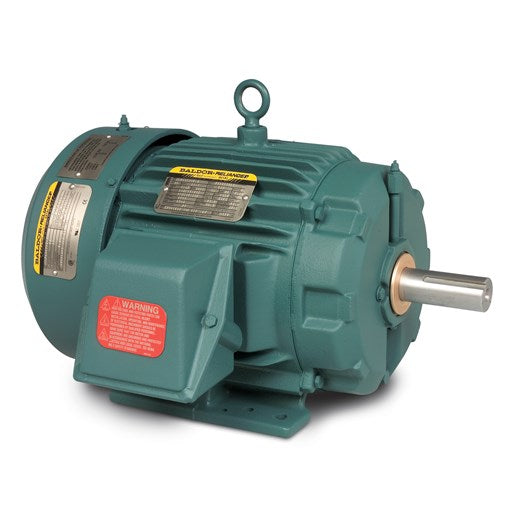

Description
Specs
| Catalog Number | ECP83768T-5 |
|---|---|
| Enclosure | TEFC |
| Frame | 215T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 5.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 575.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | CCSA US CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 2.0 |
| Current @ Voltage | 5.700 A @ 575.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 89.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 5.7 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| IP Rating | NONE |
| KVA Code | J |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 1800 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 14 AWG |
| Motor Type | 0748M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 19.50 IN |
| Power Factor | 73 |
| Product Family | Chem Process S/P 32-8 IEEE 841 |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1160 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| XP Temp Code | T3C |
Drawings
Nameplate
| CAT.NO. | ECP83768T-5 |
|---|---|
| SPEC. | 07J415Y727G1 |
| HP | 5 TE |
| VOLTS | 575 |
| AMPS | 5.7 |
| R.P.M. | 1160 |
| FRAME | 215T |
| SER.F. | 1.15 |
| RATING | 40C AMB-CONT |
| DE | 6307 |
| NEMA NOM. EFF. | 89.5 |
| GUAR. MIN. EFF. | 87.5 |
| T. CODE | T3C |
| ABMA DE BRG | 35BC03XP30X |
| ABMA ODE BRG | 30BC02XP30X |
| GREASE | POLYREX EM |
| MOTOR WEIGHT | 226 |
| MAX. R.P.M. | 1800 |
| INV.TYPE | PWM |
| T= | 160 |
| CHP | 60 |
| CT | 2.0 |
| VT | -0 |
| HTR-VOLTS | N/A |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 2.74 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 50° C |
| Temp. Rise @ S.F. Load | 63° C |
| Start Configuration | DOL |
| Break-Down Torque | 63.2 LB-FT |
| Pull-Up Torque | 43.4 LB-FT |
| Locked-Rotor Torque | 55.3 LB-FT |
| Starting Current | 36.8 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 5.0 | 36.0 | 57.0 | 67.0 | 73.0 | 76.0 | 77.0 | 75.0 | ||
| Efficiency | 0.0 | 84.7 | 89.9 | 90.5 | 89.5 | 88.3 | 86.1 | 88.8 | ||
| Speed (RPM) | 1,199 | 1,192 | 1,182 | 1,172 | 1,161 | 1,147 | 1,132 | 1,153 | ||
| Line Amps | 2.74 | 2.98 | 3.69 | 4.63 | 5.68 | 6.97 | 8.49 | 6.45 |
Parts
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
|---|
