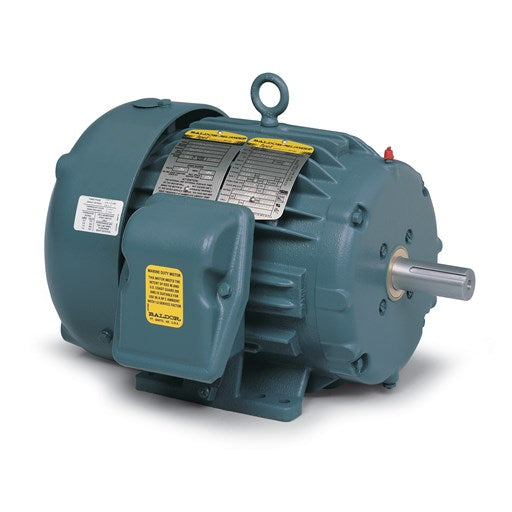

Description
Specs
| Frame Material | Iron |
|---|---|
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | CCSA US CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 2.0 |
| Current @ Voltage | 1.700 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 82.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Modification | 841 |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.7 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| KVA Code | K |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 1800 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Motor Type | 0526M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 12.87 IN |
| Power Factor | 66 |
| Product Family | Chem Process S/P 32-8 IEEE 841 |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1160 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| XP Temp Code | T4 |
Drawings
Nameplate
| CAT.NO. | ECP83582T-4 |
|---|---|
| SPEC. | 05E811X259G1 |
| HP | 1 TE |
| VOLTS | 460 |
| AMPS | 1.7 |
| R.P.M. | 1160 |
| FRAME | 145T |
| SER.F. | 1.15 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| NEMA NOM. EFF. | 82.5 |
| GUAR. MIN. EFF. | 80 |
| T. CODE | T4 |
| ABMA DE BRG | 25BC02X30X |
| ABMA ODE BRG | 25BC02X30X |
| GREASE | POLYREX EM |
| MOTOR WEIGHT | 69 |
| MAX. R.P.M. | 1800 |
| INV.TYPE | PWM |
| T= | 135 |
| CHP | 60 |
| CT | 2.0 |
| VT | -0 |
| HTR-VOLTS | N/A |
Performance
| Rated Load | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45.0 | 57.0 | 66.0 | 72.0 | 75.0 | 70.0 | ||||||||||||||
| Efficiency | 0.0 | 54.8 | 69.1 | 75.7 | 79.2 | 80.2 | 80.9 | 79.8 | |||||||||||
| Speed (RPM) | 1,199 | 1,196 | 1,191 | 1,185 | 1,180 | 1,172 | 1,166 | 1,175 | |||||||||||
| Line Amps | 1.16 | 1.17 | 1.21 | 1.28 | 1.35 | 1.44 | 1.54 | 1.40 | |||||||||||
| Power Factor | 8.0 | 18.0 | 28.0 | 36.0 | 44.0 | 51.0 | 56.0 | 48.0 |
Parts
| EXFN, PLASTIC, 6.376 OD, .638 ID | |
| 51XW2520A12 | SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
