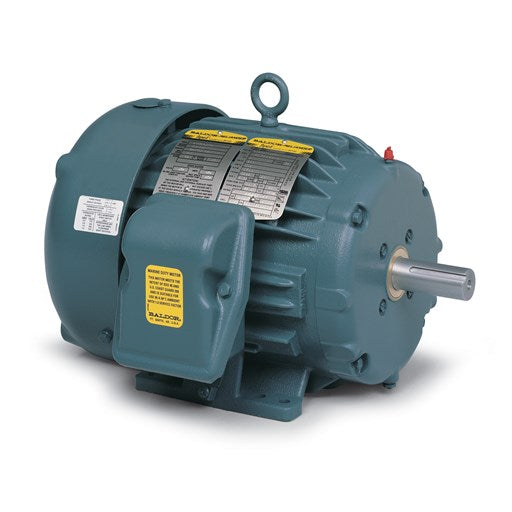

Description
Specs
| Catalog Number | ECP83580T-4 |
|---|---|
| Enclosure | TEFC |
| Frame | 143T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 3600 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | NEMA PREMIUM NEMA_PREMIUM UR CSA EEV CCSA US |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Constant Torque Speed Range | 1.8 |
| Current @ Voltage | 1.650 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 77.0 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Modification | 841 |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.7 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| KVA Code | L |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 5400 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Motor Type | 0514M |
| Mounting Arrangement | F1 |
| Number of Poles | 2 |
| Overall Length | 12.87 IN |
| Power Factor | 78 |
| Product Family | Chem Process S/P 32-8 IEEE 841 |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.25 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 3500 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| XP Temp Code | T4 |
Drawings
Nameplate
| SPEC. | 05E811X522G1 |
|---|---|
| HP | 1 TE |
| VOLTS | 460 |
| AMPS | 1.65 |
| R.P.M. | 3500 |
| FRAME | 143T |
| SER.F. | 1.25 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| NEMA NOM. EFF. | 77 |
| GUAR. MIN. EFF. | 74 |
| T. CODE | T4 |
| ABMA DE BRG | 25BC02X30X |
| ABMA ODE BRG | 25BC02X30X |
| GREASE | POLYREX EM |
| MOTOR WEIGHT | 60 |
| MAX. R.P.M. | 5400 |
| INV.TYPE | PWM |
| T= | 135 |
| CHP | 60 |
| CT | 1.8 |
| VT | -0 |
| HTR-VOLTS | N/A |
| HTR-WATTS | N/A |
Performance
| Line-Line Res. @ 25° C | 18.77 Ohms A Ph / 0 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 37° C |
| Temp. Rise @ S.F. Load | 46° C |
| Start Configuration | DOL |
| Break-Down Torque | 6.77 LB-FT |
| Pull-Up Torque | 3.58 LB-FT |
| Locked-Rotor Torque | 5.13 LB-FT |
| Starting Current | 11.5 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 13.0 | 38.0 | 57.0 | 69.0 | 78.0 | 83.0 | 86.0 | 83.0 | ||
| Efficiency | 0.0 | 65.3 | 76.8 | 80.7 | 81.9 | 81.8 | 80.8 | 81.8 | ||
| Speed (RPM) | 3,595 | 3,570 | 3,545 | 3,517 | 3,488 | 3,456 | 3,421 | 3,456 | ||
| Line Amps | 0.92 | 0.97 | 1.09 | 1.26 | 1.48 | 1.73 | 2.03 | 1.73 |
Parts
| SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 | |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
