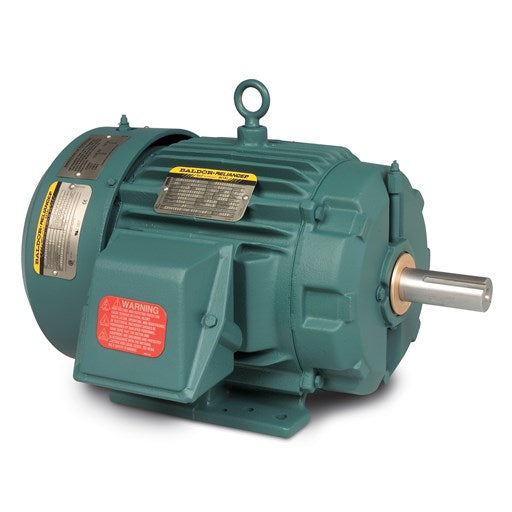

Description
Specs
| Catalog Number | ECP63774TR-4 |
|---|---|
| Enclosure | TEFC |
| Frame | 215T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 10.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | CCSA US CSA EEV NEMA PREMIUM NEMA_PREMIUM UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Mobilith SHC220, HC9455 |
| Blower | None |
| Constant Torque Speed Range | 1.3 |
| Current @ Voltage | 12.500 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 91.7 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Modification | 841 |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 12.5 a |
| Front Face Code | C-Face |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Duty |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max Speed | 2700 rpm |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 3 @ 14 AWG |
| Motor Type | 0748M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 19.49 IN |
| Power Factor | 81 |
| Product Family | CP S/P32-8 IEEE 841 Features |
| Pulley End Bearing Type | Roller |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.376 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1765 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| XP Temp Code | T3C |
Drawings
Nameplate
| CAT.NO. | ECP63774TR-4 |
|---|---|
| SPEC. | 07M686X813G1 |
| HP | 10 TE |
| VOLTS | 460 |
| AMPS | 12.5 |
| R.P.M. | 1765 |
| FRAME | 215T |
| SER.F. | 1.15 |
| RATING | 40C AMB-CONT |
| DE | NU307 |
| NEMA NOM. EFF. | 91.7 |
| GUAR. MIN. EFF. | 90.2 |
| T. CODE | T3C |
| D.E. BRG. | 35RU03X30X |
| O.D.E. BRG. | 35BC03X30X |
| GREASE | MOBILITH SHC220 |
| WEIGHT | 231 |
| RPM MAX | 2700 |
| INV.TYPE | PWM |
| T= | 160 |
| C HP FR | 60 |
| CT HZ FROM | 1.3 |
| VT HZ FROM | 0- |
| HTR-VOLTS | N/A |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 1.08 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 65° C |
| Temp. Rise @ S.F. Load | 81° C |
| Start Configuration | DOL |
| Break-Down Torque | 80.65 LB-FT |
| Pull-Up Torque | 40.2 LB-FT |
| Locked-Rotor Torque | 52.6 LB-FT |
| Starting Current | 81 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 51.0 | 72.0 | 80.0 | 83.0 | 85.0 | 85.0 | 84.0 | ||
| Efficiency | 0.0 | 87.3 | 90.8 | 91.7 | 91.7 | 90.2 | 88.5 | 91.0 | ||
| Speed (RPM) | 1,799 | 1,791 | 1,782 | 1,774 | 1,763 | 1,751 | 1,737 | 1,756 | ||
| Line Amps | 4.45 | 5.29 | 7.18 | 9.54 | 12.29 | 15.36 | 18.81 | 14.00 |
