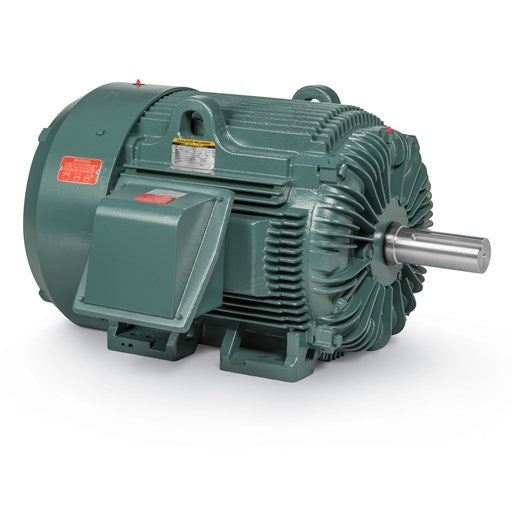

Description
Specs
| Catalog Number | ECP4409T-4 |
|---|---|
| Enclosure | TEFC |
| Frame | 444T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 100.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Constant Torque Speed Range | 15-60 |
| Current @ Voltage | 119.000 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 95.0 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 119.0 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 3 @ 2 AWG |
| Motor Type | A44064M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 44.75 IN |
| Power Factor | 82 |
| Product Family | Other |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 3.375 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1190 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| XP Temp Code | T3 |
Drawings
Nameplate
| HP | 100 |
|---|---|
| FRAME | 444T |
| D.E. BRG.DATA | 6318 |
| D.E. BRG. | 90BC03J30X |
| O.D.E. BRG. | 90BC03J30X |
| 3/4 LOAD EFF. | 95.3 |
| TEMP CODE | T3 |
| CHP HZ | 60-90 |
| INVERTER-TEMP-CODE | T3 |
Performance
| Rated Load |
|---|
Parts
| LCKW 3/8 STD. PLATED | |
| 412118006A | DRAIN |
