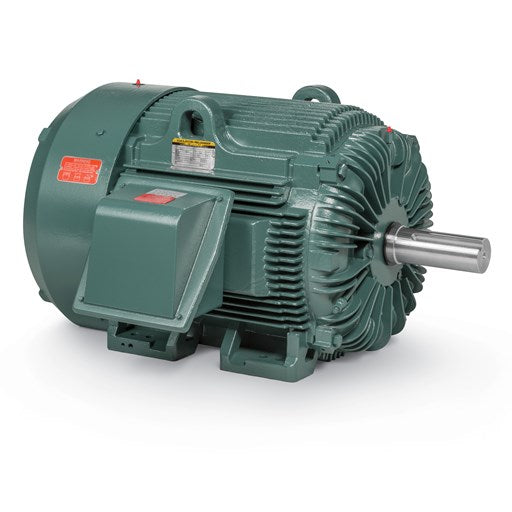

Description
Specs
| Catalog Number | ECP4404TR-4 |
|---|---|
| Enclosure | TEFC |
| Frame | 405T |
| Frame Material | Iron |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 75.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1200 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ |
| XP Class and Group | CLI GP A,B,C,D |
| XP Division | Division II |
| Agency Approvals | CCSAUSEEV |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | Mobil SHC 220 (Athens Only) |
| Constant Torque Speed Range | 10-60 |
| Current @ Voltage | 86.500 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 94.5 % |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 86.5 a |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Lead Quantity/Wire Size | 3 @ 4 AWG |
| Motor Type | A4072M |
| Mounting Arrangement | F1 |
| Number of Poles | 6 |
| Overall Length | 38.20 IN |
| Power Factor | 86 |
| Product Family | General Industrial |
| Pulley End Bearing Type | Roller |
| Pulley Face Code | Standard |
| Service Factor | 1.15 |
| Shaft Diameter | 2.875 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1185 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| XP Temp Code | T3 |
Drawings
Nameplate
| CAT NO | ECP4404TR-4 |
|---|---|
| HP | 75 |
| FRAME | 405T |
| D.E. BRG.DATA | NU316 |
| D.E. BRG. | 80RU03M30X |
| O.D.E. BRG. | 80BC03J30X |
| 3/4 LOAD EFF. | 94.8 |
| TEMP CODE | T3 |
| CHP HZ | 60-90 |
| INVERTER-TEMP-CODE | T3 |
Performance
| Rated Load |
|---|
