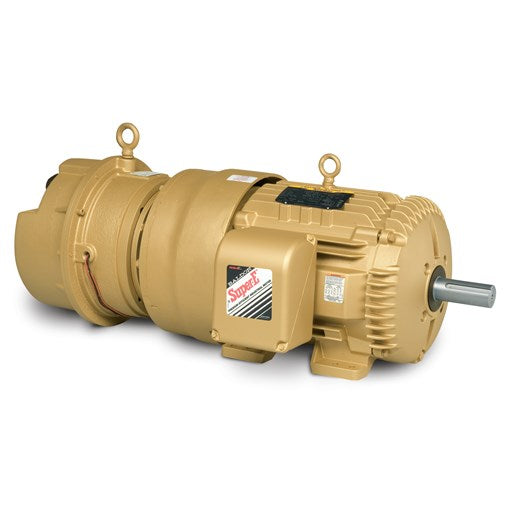

Baldor EBM4104T 30HP, 1760RPM, 3PH, 60HZ, 284T, 1056M, TEFC, F1

BaldorSKU: EBM4104T

Dropship

Get it by Wed, Nov 26 - Mon, Dec 01

Price:
Sale price$12,629.65

Description

Specs
Catalog Number EBM4104T
Enclosure TEFC
Frame 284T
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 30.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 460.0 V @ 60 HZ 230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals NEMA_PREMIUM UR NEMA PREMIUM CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 125.0 lb-ft
Current @ Voltage 76.000 A @ 230.0 V 78.000 A @ 208.0 V 38.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 38.0 a
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Overall Length 42.84 IN
Power Factor 80
Product Family General Purpose
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
Drawings
Nameplate
CAT.NO. EBM4104T
SPEC. 10F791Y538G2
HP 30
RPM 1760
VOLT 230/460
AMP 76/38
RATING 40C AMB-CONT
NEMA-NOM-EFF 93.6
Performance
Pull-Up Torque 142 LB-FT
Locked-Rotor Torque 178 LB-FT
Starting Current 270 A
Rated Load Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 41.0 63.0 73.0 80.0 82.0 85.0 81.0
Efficiency 0.0 87.6 92.3 93.5 93.7 93.4 92.9 93.5
Speed (RPM) 1,799 1,792 1,788 1,782 1,776 1,770 1,762 1,773
Line Amps 17.90 19.80 24.30 30.70 37.60 45.60 55.20 42.40
Parts
10CB3500SP CONDUIT BOX LID, CAST
10GS1000SP GASKET, CONDUIT BOX LID
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD
MN416A01 TAG-INSTAL-MAINT no wire (2100bx)4/22
