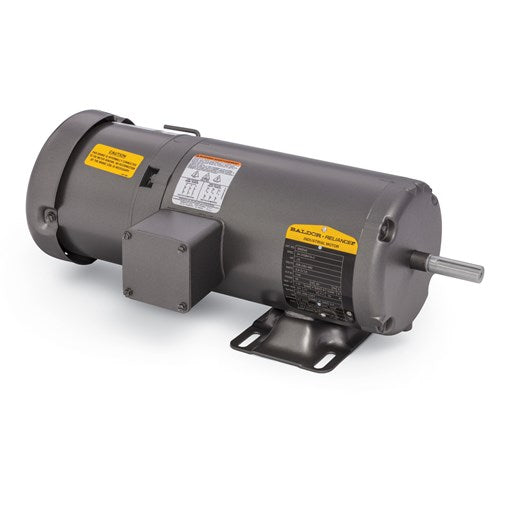

Description
Specs
| Front Shaft Indicator | None |
|---|---|
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Inverter Ready |
| KVA Code | N |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3520M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 16.85 IN |
| Power Factor | 69 |
| Product Family | General Purpose |
| Product Type | BRAKE MOTOR |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1770 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | EBM3546 |
|---|---|
| SPEC. | 35F981G004G1 |
| HP | 1 |
| VOLTS | 230/460 |
| AMP | 3.2/1.6 |
| RPM | 1770 |
| FRAME | 56 |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 85.5 |
| RATING | 40C AMB-CONT |
| CC | 010A |
| DE | 6205 |
| ENCL | TEFC |
Performance
| Temp. Rise @ Rated Load | 36° C |
|---|---|
| Temp. Rise @ S.F. Load | 41° C |
| Start Configuration | DOL |
| Break-Down Torque | 14.6 LB-FT |
| Pull-Up Torque | 7.57 LB-FT |
| Locked-Rotor Torque | 9.17 LB-FT |
| Starting Current | 14.6 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 8.0 | 29.0 | 45.0 | 58.0 | 67.0 | 73.0 | 78.0 | 71.0 | ||
| Efficiency | 0.0 | 71.1 | 81.2 | 84.7 | 85.8 | 86.0 | 85.6 | 85.9 | ||
| Speed (RPM) | 1,800 | 1,794 | 1,787 | 1,781 | 1,774 | 1,767 | 1,759 | 1,770 | ||
| Line Amps | 1.20 | 1.22 | 1.31 | 1.46 | 1.64 | 1.86 | 2.11 | 1.77 |
Parts
| HA1014A02SP | SPL SPACER FOR FAN COVER MTD ON BRAKE |
|---|---|
| 35FN3002A01SP | EXFN, PLASTIC, 6.376 OD, .625 ID W/FLAT |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
