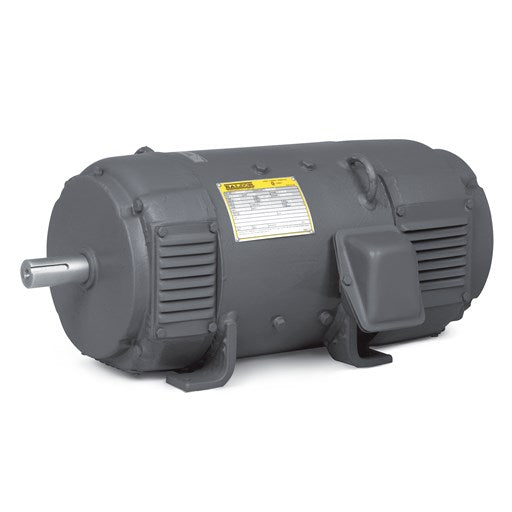

Description
Specs
| Ambient Temperature | 40 °C |
|---|---|
| Armature Current | 32.6 a |
| Base Indicator | Rigid |
| Bearing Grease Type | No Grease |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| Field Winding Type | COMPOUND |
| Frame Prefix | AD |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | Standard Lifting Lugs |
| Mounting Arrangement | F2 |
| Overall Length | 24.50 IN |
| Service Factor | 1.00 |
| Shaft Diameter | 1.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Slinger Indicator | No Slinger |
| Motor Standards | NEMA |
| Thermal Device - Bearing | None |
Drawings
Nameplate
| CAT.NO. | DMG2307 |
|---|---|
| KW | 7.5KW |
| ARM VOLTS | 230 |
| FIELD VOLTS | 230 |
| ENCL | DPFG |
| SERVICE FACTOR | 1.0 |
| O.D.E. BRG. | 6207 |
Performance
| Rated Load |
|---|
