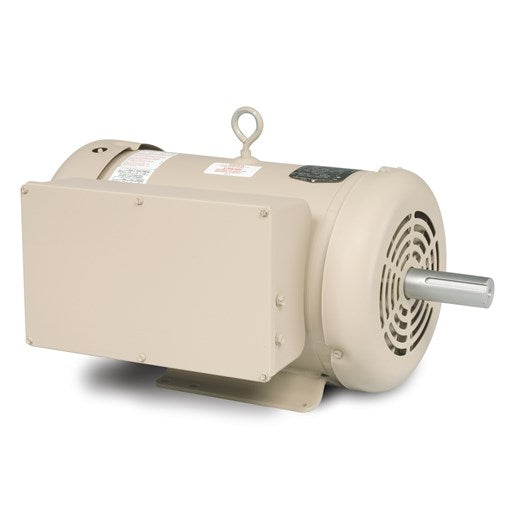

Description
Specs
| Catalog Number | DEL3737TM |
|---|---|
| Enclosure | TEFC |
| Frame | 215T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Cap Start, Cap Run |
| Output @ Frequency | 10.000 HP @ 60 HZ |
| Phase | 1 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 230.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | UR CSA |
| Ambient Temperature | 50 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 39.000 A @ 230.0 V |
| Design Code | L |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 85.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 39.0 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | H |
| Inverter Code | Not Inverter |
| KVA Code | H |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Cap Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 2 @ 10 AWG, A PH |
| Motor Type | 3750LC |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 21.27 IN |
| Power Factor | 96 |
| Product Family | General Purpose |
| Product Type | FARM DUTY |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 1.375 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1750 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | Manual Thermal Overload |
| Winding Thermal 1 Location | KO |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | DEL3737TM |
|---|---|
| SPEC. | 37M294W004G1 |
| HP | 10 |
| VOLTS | 230 |
| AMP | 39 |
| RPM | 1750 |
| FRAME | 215T |
| SER.F. | 1.15 |
| NEMA-NOM-EFF | 85.5 |
| RATING | 50C AMB-CONT |
| DE | 6307 |
| ENCL | TEFC |
Performance
| Line-Line Res. @ 25° C | 0.219 Ohms A Ph / 0.695 Ohms B Ph |
|---|---|
| Temp. Rise @ Rated Load | 75° C |
| Temp. Rise @ S.F. Load | 95° C |
| Start Configuration | DOL |
| Break-Down Torque | 96.52 LB-FT |
| Pull-Up Torque | 58.68 LB-FT |
| Locked-Rotor Torque | 77.54 LB-FT |
| Starting Current | 280 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 56.0 | 88.0 | 97.0 | 98.0 | 98.0 | 96.0 | 93.0 | 97.0 | ||
| Efficiency | 0.0 | 67.3 | 81.4 | 85.5 | 85.6 | 83.5 | 80.0 | 84.3 | ||
| Speed (RPM) | 1,799 | 1,788 | 1,776 | 1,765 | 1,749 | 1,731 | 1,707 | 1,738 | ||
| Line Amps | 7.38 | 13.81 | 20.64 | 29.04 | 38.61 | 50.07 | 63.69 | 45.50 |
Parts
| CAPACITOR 50 MFD 370 VAC | |
| RE5029 | MARS 91423 DOUBLE POLE 230-240V CONTACTO |
| TPLED1024SP | THERMAL 1PH 1.5 MAN REF LED945 TDR #5817 |
| EC1216C06SP | ELEC CAP, 216-259 MFD, 250V, 2.06D X 4. |
| 37FN3002A01SP | EXFN, PLASTIC, 9.00 OD, 1.155 ID |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
