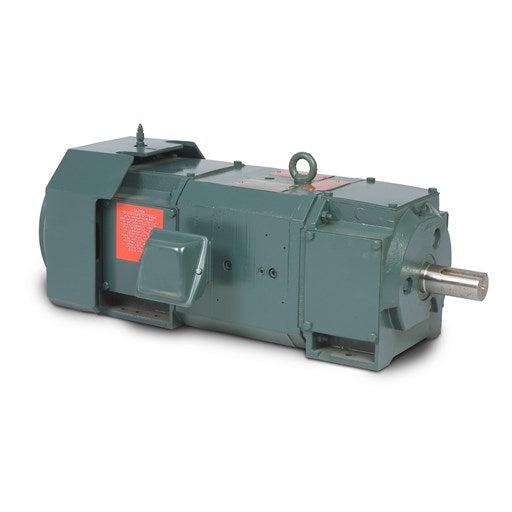

Description
Specs
| Armature Voltage | 500 V |
|---|---|
| Base Speed | 1750 rpm |
| Enclosure | TEFC |
| Field Voltage | 300 V |
| Frame | LC3212ATZ |
| Frame Material | Laminated |
| Output Power | 50.000 HP |
| Agency Approvals | CCSA US |
| Ambient Temperature | 40 °C |
| Armature Current | 84.0 a |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | CUST SUPPLIED |
| Field Winding Type | STAB SHUNT |
| Frame Prefix | LC |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | Standard Lifting Lugs |
| Mounting Arrangement | F2 |
| Overall Length | 43.88 IN |
| Service Factor | 1.00 |
| Shaft Diameter | 2.624 IN |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Slinger Indicator | No Slinger |
| Motor Standards | NEMA |
| Thermal Device - Bearing | None |
Drawings
Nameplate
| CAT.NO. | D5550R |
|---|---|
| FR | LC 3212ATZ |
| ENCL. | TEFC |
| MAX SAFE SPEED | 2450 |
| WINDING | STAB SHUNT |
| VOLTS | 300 |
| MAX AMPS @ 25 C | 1.98 |
| HOT AMPS | 1.37/.94 |
Performance
| Rated Load |
|---|
Parts
| 036500013AB | M16 X 2.0 HX NUT,ODE BRKT 304589 |
|---|---|
| 036500013AB | M16 X 2.0 HX NUT,ODE BRKT 304589 |
