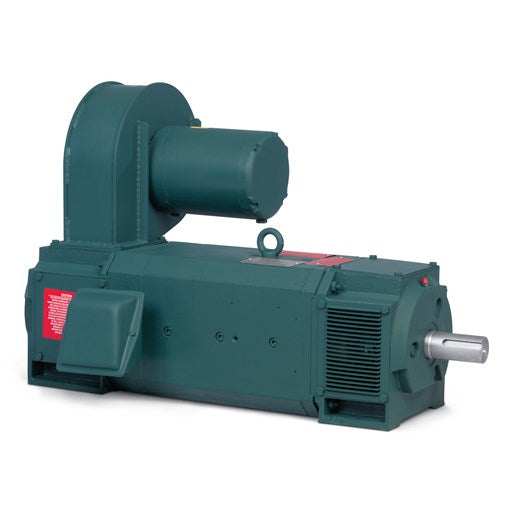

Description
Specs
| Armature Voltage | 500 V |
|---|---|
| Base Speed | 1750 rpm |
| Enclosure | DP |
| Field Voltage | 300 V |
| Frame | LC2113ATZ |
| Frame Material | Steel |
| Output Power | 30.000 HP |
| Agency Approvals | CCSA US |
| Ambient Temperature | 40 °C |
| Armature Current | 52.0 a |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| Field Winding Type | STR SHUNT |
| Frame Prefix | LC |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | Standard Lifting Lugs |
| Mounting Arrangement | F1 |
| Overall Length | 31.25 IN |
| Service Factor | 1.00 |
| Shaft Diameter | 1.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Slinger Indicator | No Slinger |
| Motor Standards | NEMA |
| Thermal Device - Bearing | None |
Drawings
Nameplate
| CAT.NO. | D5030R-BV |
|---|---|
| FR | LC 2113ATZ |
| ENCL. | DP |
| ENCL MOD | FORCE VENT |
| MAX SAFE SPEED | 4500 |
| WINDING | STR SHUNT |
| VOLTS | 300 |
| MAX AMPS @ 25 C | 3.30 |
| HOT AMPS | 2.41/ 1.68 |
Performance
| Rated Load |
|---|
Parts
| 706364051AA | BRHLD ADD HARDWARE |
|---|---|
| 706372001B | ROCKR METRIC |
| 032018006CK | HHCS 3/8-16X3/4L PLATED 411409 |
| 034017014AB | LCKW 3/8 STD. PLATED |
| 065564000B | GASK 250-280 |
| 706320005A | CONDUIT BOX |
