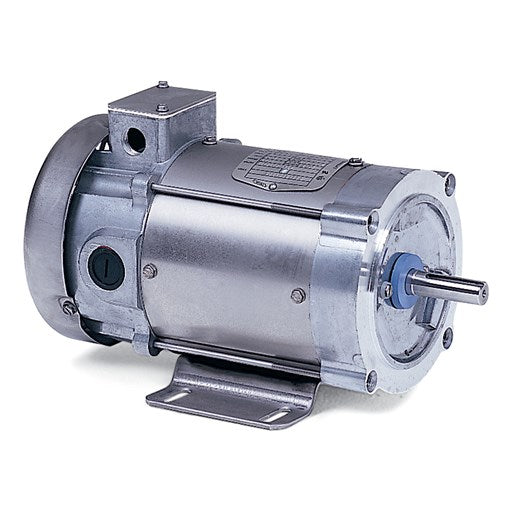

Description
Specs
| Armature Voltage | 180 V |
|---|---|
| Base Speed | 1750 rpm |
| Enclosure | TEFC |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Output Power | 0.500 HP |
| XP Class and Group | None |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Armature Current | 2.5 a |
| Armature Inertia | 10.926 lb-ft2 |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Feedback Device | NO FEEDBACK |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Lifting Lugs | No Lifting Lugs |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 2 @ 14 AWG |
| Mounting Arrangement | F1 |
| Overall Length | 13.66 IN |
| Product Family | Wash Down Paint Free |
| Pulley End Bearing Type | Sealed Bearing |
| RoHS Status | ROHS COMPLIANT |
| Service Factor | 1.00 |
| Shaft Diameter | 0.625 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Motor Standards | NEMA |
| XP Division | Not Applicable |
Drawings
Nameplate
| CAT.NO. | CDPSWD3426 |
|---|---|
| SPEC. | 34-6694-3946G1 |
| HP | .5 |
| RPM | 1750 |
| FRAME | 56C |
| ARM V | 180 |
| INSUL | F |
| DUTY | CONT |
| BRG/DE | 6203 |
| BRUSHES | 2/BP5000AW14 |
Performance
| Armature Resistance | 2.728 ohms |
|---|---|
| Armature Inductance | 27.3166 mH |
| Rated Load | Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
|---|---|---|---|---|---|---|---|---|---|
| Armature Amps | 0.16 | 5.66 | 7.36 | 9.76 | 12.96 | 15.36 | 17.76 | ||
| RPM | 1985 | 1750 | 1678 | 1576 | 1439 | 1337 | 1234 | ||
| Torque | 0 | 3.44 | 4.5 | 6 | 8 | 9.5 | 11 |
Parts
| BP5000AW14SP | CARBON BRUSH - 33P, 180 VOLTS |
|---|---|
| HW4600B39SP | V-RING SLINGER 0.550 X 0.790 X .18 VITON |
| 34FN3002A01SP | EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ |
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
