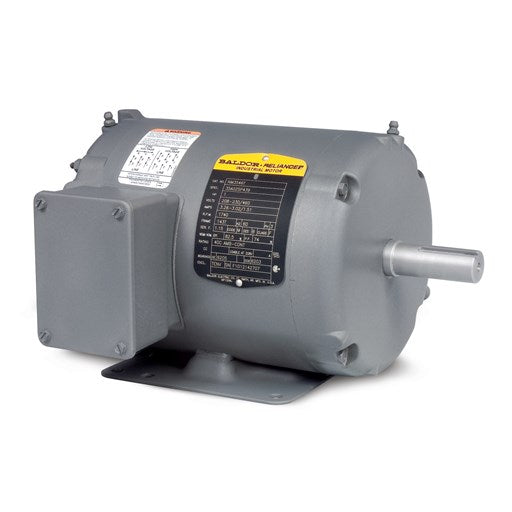

Description
Specs
| Catalog Number | AOM3546T |
|---|---|
| Enclosure | TEAO |
| Frame | 143T |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Letter Type | Three Phase |
| Output @ Frequency | 1.000 HP @ 60 HZ |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ |
| Voltage @ Frequency | 460.0 V @ 60 HZ 230.0 V @ 60 HZ 208.0 V @ 60 HZ |
| XP Class and Group | None |
| XP Division | Not Applicable |
| Agency Approvals | CSA UR |
| Ambient Temperature | 40 °C |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Bearing Grease Type | Polyrex EM (-20F +300F) |
| Blower | None |
| Current @ Voltage | 3.800 A @ 208.0 V 3.600 A @ 230.0 V 1.800 A @ 460.0 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty Rating | CONT |
| Efficiency @ 100% Load | 75.5 % |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Feedback Device | NO FEEDBACK |
| High Voltage Full Load Amps | 1.8 a |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | B |
| Inverter Code | Not Inverter |
| KVA Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Motor Type | 3428M |
| Mounting Arrangement | F1 |
| Number of Poles | 4 |
| Overall Length | 11.81 IN |
| Power Factor | 64 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | None |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875 IN |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1725 rpm |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct on line |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
Drawings
Nameplate
| CAT.NO. | AOM3546T |
|---|---|
| SPEC. | 34T61-3254 |
| HP | 1 AIR OVER |
| VOLTS | 208-230/460 |
| AMP | 3.8-3.6/1.8 |
| RPM | 1725 |
| FRAME | 143T |
| SER.F. | 1.00 |
| NEMA-NOM-EFF | 75.5 |
| RATING | 40C AMB-CONT |
| DE | 6205 |
| ENCL | TEAO |
Performance
| Full Load Torque | 0 LB-FT |
|---|---|
| No-Load Current | 0 A |
| Line-Line Res. @ 25° C | 12.3 Ohms A Ph / 0 Ohms B Ph |
| Temp. Rise @ Rated Load | 66° C |
| Start Configuration | DOL |
| Break-Down Torque | 14.6 LB-FT |
| Pull-Up Torque | 12.5 LB-FT |
| Locked-Rotor Torque | 15.8 LB-FT |
| Starting Current | 14.6 A |
| Rated Load | Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Power Factor | 12.0 | 31.0 | 46.0 | 57.0 | 66.0 | 72.0 | 76.0 | 0.0 | ||
| Efficiency | 0.0 | 57.8 | 70.5 | 76.0 | 77.3 | 78.6 | 76.5 | 0.0 | ||
| Speed (RPM) | 1,798 | 1,786 | 1,773 | 1,760 | 1,747 | 1,734 | 1,716 | 0 | ||
| Line Amps | 1.30 | 1.35 | 1.47 | 1.63 | 1.84 | 2.06 | 2.38 | 0.00 |
Parts
| 34EP3100A03SP | FR ENDPLATE, MACH |
|---|---|
| MN416A01 | TAG-INSTAL-MAINT no wire (2100bx)4/22 |
